Liquid Injection Molding
Liquid Injection Molding

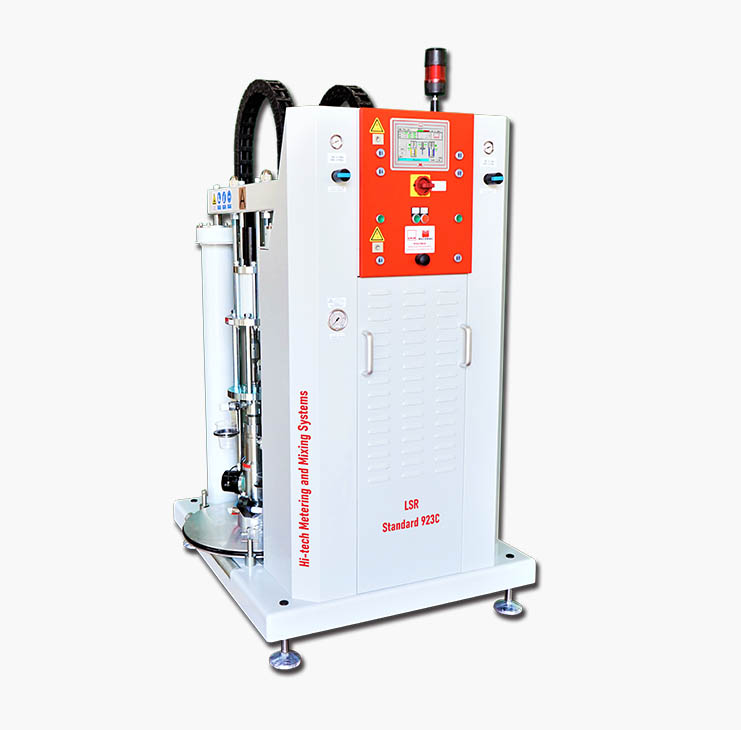

LSR Standard 923C
Metering & Mixing System
HIGHLIGHT PERFORMANCE: Visual HMI operation interface; 7-inch touch screen; Hydraulic driven, compact and delicate equipment; High configuration, low investment cost; Especially suitable for production lines without much change in product structure.
HIGHLIGHT PERFORMANCE
Economical
Easy to use
Safe and stable
Quality assurance
Parameters
| TECHNICAL DATA | ||||||||
|---|---|---|---|---|---|---|---|---|
| Viscosity | 1,000,000 mPas | |||||||
| Output mixed material | 800 g/min (depending on viscosity) | |||||||
| Mixing ratio | 1:1 or variable ± 5% | |||||||
| Color metering | 0.3% ~ 4% | |||||||
| Actuation | Hydraulic | |||||||
| Electric data | 380–480 VAC, 50-60 Hz (3P+PE), 16A | |||||||
| Connection LIM machine | 24V | |||||||
| Pneumatic system | R1/4”,6 bar low | |||||||
| Weight | 745 kg | |||||||
| Dimensions | 1,030 x 1,112 x 1,950 mm (W x D x H) (Height +800 mm if pump completely lifted) |
|||||||
